Type 5 Luminova

Glow up. With full Super-LumiNova®, oil-filled depth, and satellite timekeeping, the TYPE 5 Luminova is a dive watch that doesn’t play by the rules.

TECHNICAL SPECIFICATIONS
Reference: TYPE 5 Luminova

Functions
• Hours
• Minutes
• Runner (90 seconds)
• Oil temperature indicator

Movement
• Patented ROCS 5 – Ressence Orbital Convex System
• Driven by the minute axle of a customized ETA 2824/2 base calibre
• Magnetic transmission from air to oil
• Compensating bellows for oil volume regulation

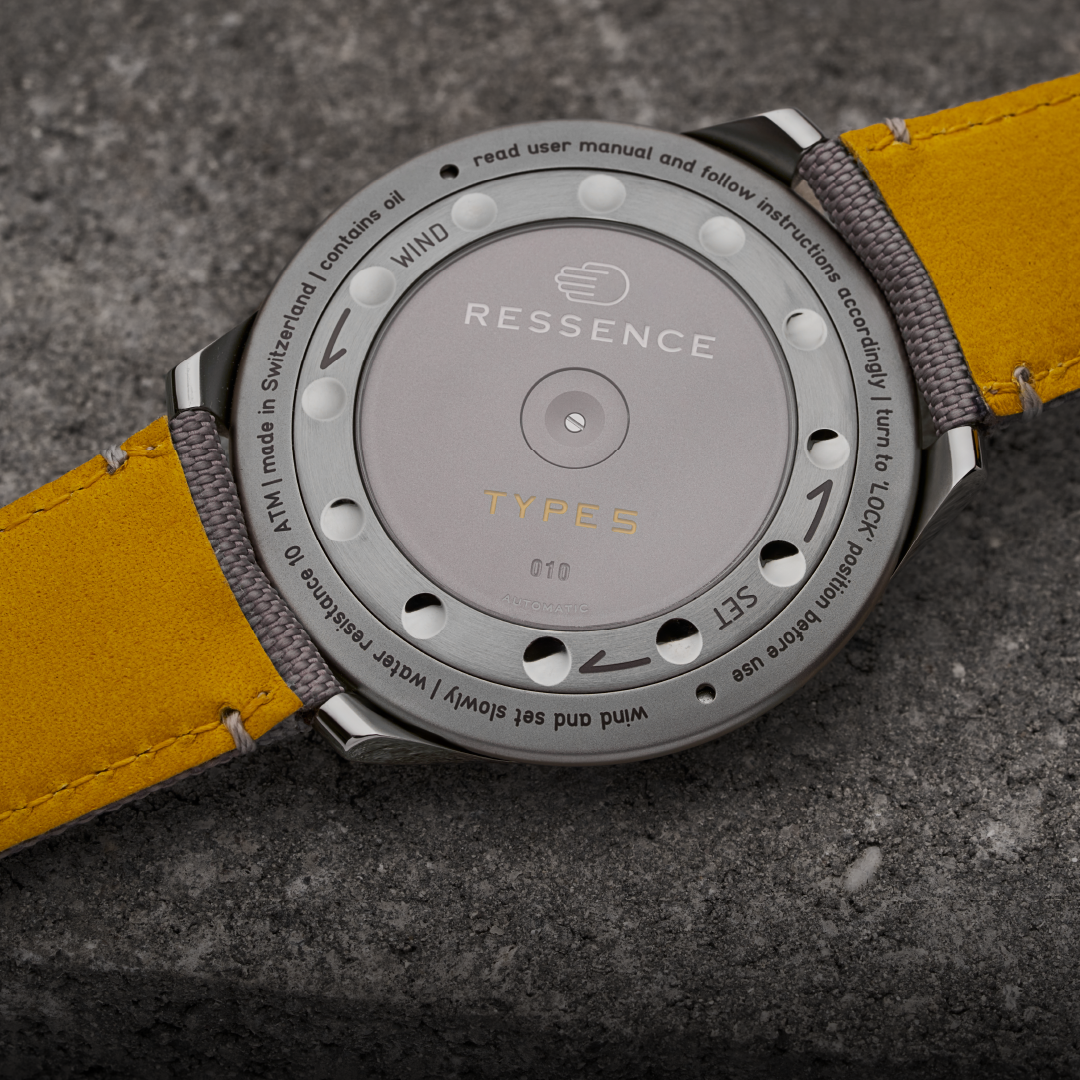

• Caseback winding and time setting via Ressence Compression Lock System (RCLS)
• Self-winding
• Power reserve: 36 hours
• Frequency: 28,800 Vph (4 Hz)
• 41 jewels
• 25 gears
• 3 ball bearings

Case
Material: Grade 5 titanium
Diameter: 46 mm
Thickness: 15.5 mm
Crystal: Double-domed sapphire top and bottom with internal anti-reflective coating
Bezel: Uni-directional rotating bezel
Chambers: Two sealed chambers, upper chamber filled with 3.75 ml of oil
Water resistance: 10 ATM (100 m) – ISO 6425 compliant

Dial

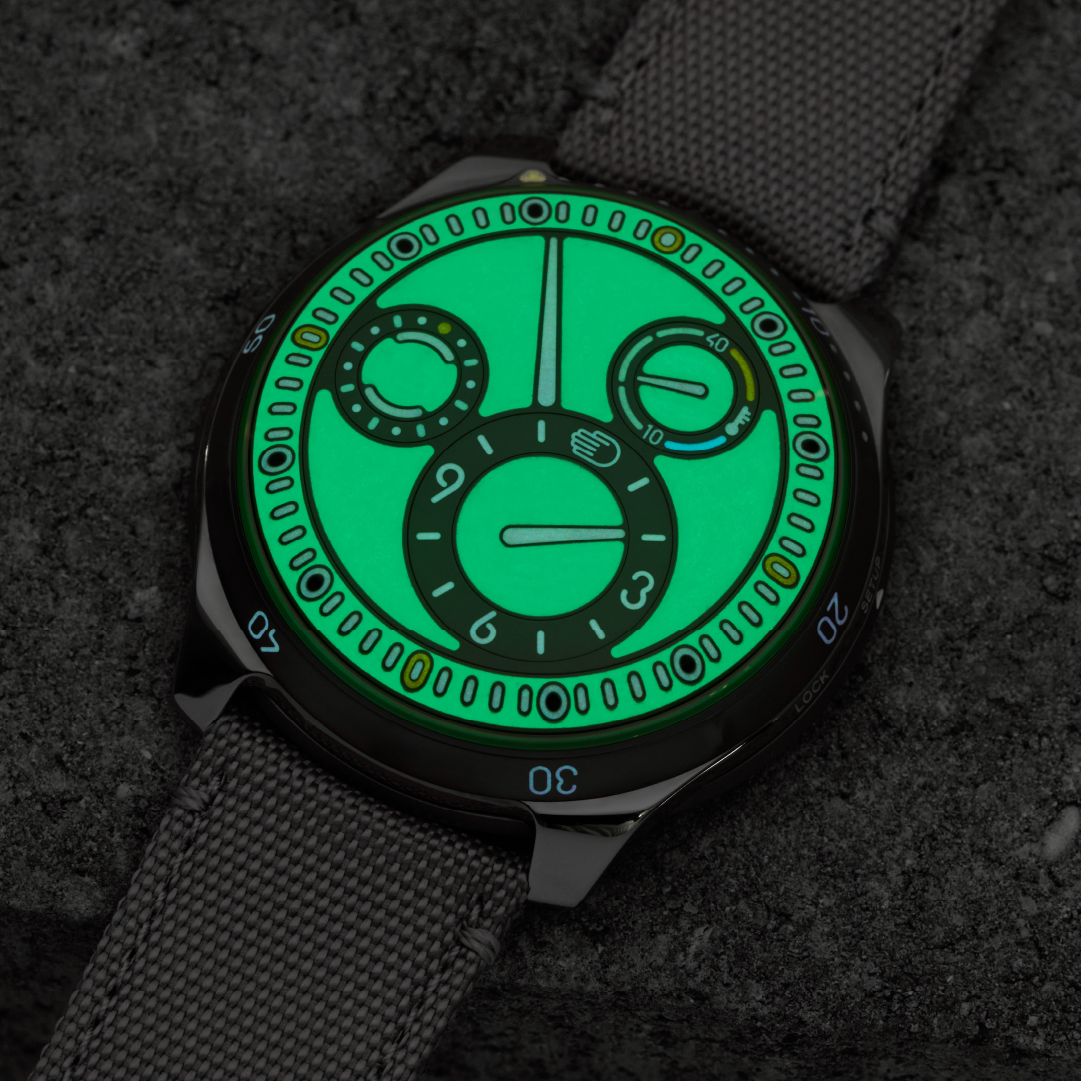

Engraved indications and dial fully filled with green Grade A Super-LumiNova®
Display: Orbital rotating system with runner and temperature gauge

Strap & Buckle
Straps:
• Grey fabric strap with yellow leather lining (24/22 mm)
• Blue rubber strap (24/24 mm)
Buckle: Titanium ardillon buckle

Components & Weight
Total components: 325
Weight: 85 grams
